MEDICAL DEFIBRILLATOR
VITAL WAVE

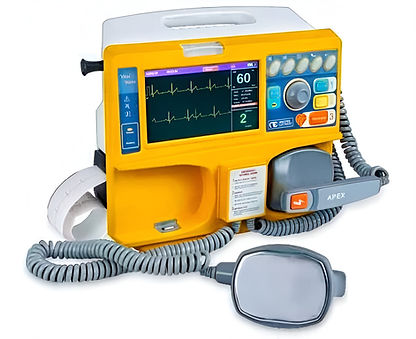

Portable Biphasic Defibrillator
.jpg)
Features
-
7” colour TFT display
-
Easy energy selection up to 270 joules
-
Less than 8 seconds for full charge 270 joules
-
More than 50 shocks on full charge battery
-
Event trend and storage up to 24 HRS
-
ECG acquisition via paddles & cable
-
Upgradable to SpOâ‚‚ & NIBP
Technical Specifications
-
Channel: 2 Channel
-
Electrode: 3 / 5 Leads
-
ECG Acquisition: Patient Cable and Paddles
-
Display: 2 Waveforms with HR and Joules selected
-
Lead: Lead I, II, III, aVR, aVL, aVF, V
-
Gain Selection: 5 / 10 / 15 / 20 mm/mv
-
Sweep Speed: 12.5, 25 or 50 mm/sec
-
Heart Rate Range: 30 – 240 bpm
-
Heart Rate Accuracy: ± 2 bpm
-
Frequency Response: 0.05 to 40 Hz
-
CMRR: >100 dB
-
Input Impedance: >100 M Ohms
