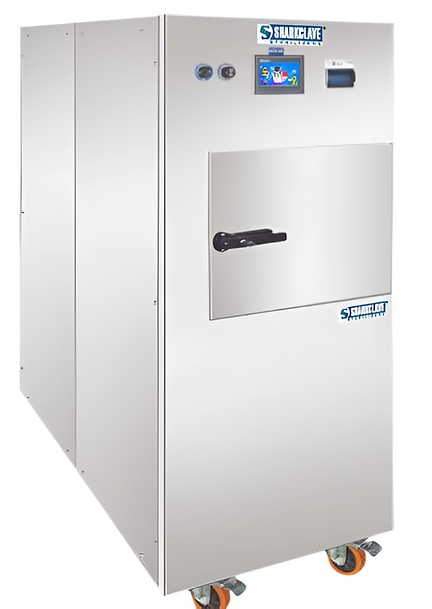

ETO sterilizer

Stainless steel inner chamber
Electric heating delivers equal heating throughout the inner chamber used to silicon heater
HMI Digital display shows working status and operating mode
Double configuration: Can use single filling pure epoxy ethane and epoxy ethane mixed
Negative pressure working system and Pressure control system maintains optimum pressure
The setting parameters of sterilization pressure, temperature and time and humidity can be set as per the requirement
PLC & HMI display with printer & memory storage function (USB)
Automated cartridge puncture, no manual operation at all.
Equipped with vacuum system, exhaust system, humidity sensor, heating system, air purification system, circulatory system and air filtration system

USB: The integrated front USB port allows cycle data to be stored digitally making record keeping simple and efficient (Optional).
Printing: Units come with an integrated thermal printer.
STANDARD ACCESSORY: 10 units of Ethylene Oxide Cartridges
Impulse Heat Sealing Machine
2 Size packing cover rolls
UPS 500W

MODEL NAME VOLUME (Cub.Ft) POWER (Kw) CHAMBER SIZE CYCLE TEMP. & TIME (H x W x D)

SHARKETO-50L 2.0 2.5 Kw 1.0 x 1.0 x 2.0 ft Warm Cycle : 55°C – approximately 7-8 hours.
Cold Cycle : 37°C – approximately 8-10 hours.

SHARKETO-80L 3.0 3.5 Kw 1.0 x 1.0 x 3.0 ft Warm Cycle : 55°C – approximately 7-8 hours.
Cold Cycle : 37°C – approximately 8-10 hours.

SHARKETO-120L 4.2 4.5 Kw 1.0 x 1.0 x 4.0 ft Warm Cycle : 55°C – approximately 7-8 hours.
Cold Cycle : 37°C – approximately 8-10 hours.

SHARKETO-135L 5.0 5 Kw 1.0 x 1.0 x 5.0 ft Warm Cycle : 55°C – approximately 7-8 hours.
Cold Cycle : 37°C – approximately 8-10 hours.

SHARKETO-240L 9.0 6 Kw 1.5 x 1.5 x 4.0 ft Warm Cycle : 55°C – approximately 7-8 hours.
Cold Cycle : 37°C – approximately 8-10 hours.

ETO STERILIZER
