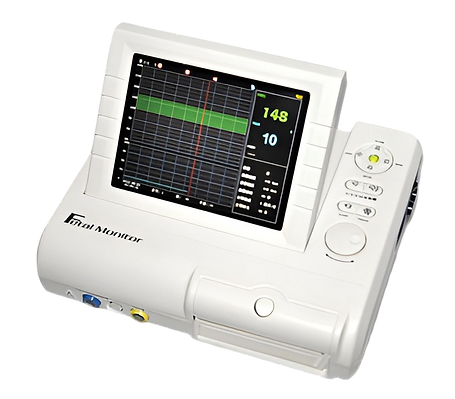

FETAL MONITOR
FETAL MONITOR
PERFORMANCE
-
Type of protection against electric shock: Class 1
-
Degree of protection against electric shock:
Type B applied part working -
Power Supply: AC 100V–240V
-
Frequency: 50Hz / 60Hz
-
P < 60VA
-
Record paper: Z-fold paper
-
Print Width: 112 mm
-
Paper speed: 1 cm/min, 2 cm/min, 3 cm/min (optional)
FEATURES
-
Compact design, can be placed horizontally or wall-mounted
-
8.4” screen color LCD display, rotatable screen to 60°
-
Clear display of patient data and curves
-
Area mark for normal FHR (120 BPM – 160 BPM)
-
Manual records for fetal movement
-
Sound and color alarm for high and low fetal heart rate
-
24-hours continuous real-time monitoring
-
12-hours continuous patient curve and data storage/playback, with picture freeze function
-
Twins monitoring optional
-
9 crystal and brand beam transducer probe
-
Extra-long life, high-resolution thermal printer matrix, outputs waveform, text, and other data
-
Built-in communication port for central monitoring system
-
Communication via built-in RJ45
-
3-in-1 Transducers: Ultrasound, Toco, Remote Marker
-
Dimension: 320 mm (L) x 260 mm (W) x 80 mm (H)
