The Cflow-9C/10C Advance is a high specification Anesthesia Machine providing the ideal solution for today’s busy operating room.
Find the right Anesthesia Workstation to suit your clinical care setting. Our devices offer advanced features to care for even the most complex patients, and different levels of mobility for use on the go or where space is limited.

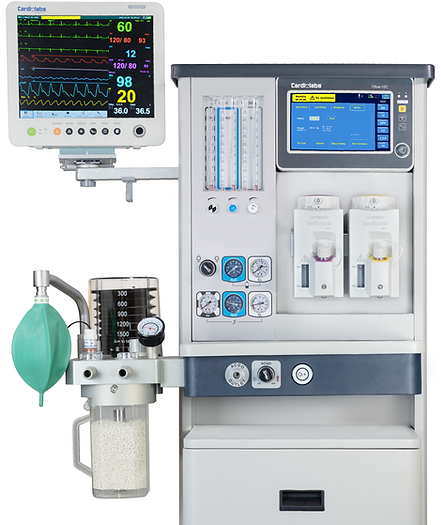

Cflow - 9C/10C
All Intelligence Leads to Ease
Cflow-10C is a three-gas (O2, N2O, and air) anesthesia workstation which maintains minimum minute ventilation. The workstation’s capabilities include VCV, PCV, SIMV-V, SIMV-P, PSV/CPAP, Manual, ACGO. Featuring a comprehensive color-coded alarm system with alarm messages for patient safety, Cflow-10C has both adult and peadiatric modes.
Features
-
Tidal volume from 20ml to 1500ml (Pediatric, Adult)
-
VCV, PCV, SIMV-V, SIMV-P, PSV/CPAP, Manual, ACGO
-
More than 180 minute battery backup
-
Large capacity drawer units
-
Selectatec bar for two vaporizer
-
Three electrical outlets
-
Electronic PEEP allows clinicians to set accurate PEEP
-
Mechanical flow meter with back light (5 tubes)
-
Yoke system (1xO2, 1xN2O; without cylinders)
-
Optional: Vaporiser, SpO2 Module, CO2 (mainstream)
-
Standards Compliant Fully compliant to ISO 80601-2-13, ISO 80601-2-55,EMC 60601-2 and IEC 60601-1.
.png)
Important ventilation data at a glance
-
10.1" touchscreen displays waveforms & loops simultaneously
-
Waveforms : P-T, F-T, V-T Loops : P-V, F-V
-
Over 30 Monitering parameters
-
Diffrent colour indication for Controled & Triggered Breath
-
Featuring a wide range of diagnostic parameter
Specifications
​
Model Cflow-10C Cflow-9C
​
Display (Color Touchscreen) 10.1 Inch 9 Inch
Tidal Volume (VT) 10ml~1500ml 20ml~1500ml
Patient Type Adult & Paediatric
Ventilation mode VCV, PCV, SIMV-V, SIMV-P, PSV/CPAP, Manual, ACGO
Frequency (f) 1~150 bpm
Frequency SIMV 2~80 bpm
Electronic PEEP OFF, 3~20 cm H2O
I : E ratio 9.9:1~1:9.9
Pressure control 2~60cm H2O
Pressure support 0~60cm H2O
Trigger Flow and Pressure trigger Inspiratory time 0.1~12s, Inspiratory pause: 0~50%
Rotary Knob with key pad for simple operation
Case START/STOP key with timer
​
